The quality only a BMW specialist can provide

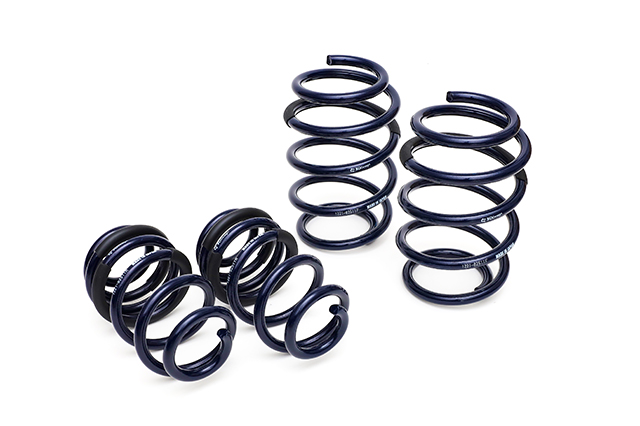

Most lowering springs are made with only one objective in mind – reducing ride height. Concerns like ride quality sadly fall by the wayside. 3DDesign’s lowering springs are different. Street-oriented, we’ve made them specifically to work with the stock dampers, ensuring ride quality is as close to stock as possible. Of course, they’re made in Japan, ensuring the highest quality, and are zinc-coated before being painted, for longer life in snowy areas.
| Model | Ride height reduction (front) | Ride height reduction (rear) | Product number | Variations | ||
|---|---|---|---|---|---|---|
| 1 Series | F40 | M135i | -20mm | -20mm | 1221-24011 | For M135 only |
| 118d | -20mm | -20mm | 1221-24012 | |||
| 2 Series | G42 | M240i | -25mm | -25mm | 1221-34211 | For M240 only |
| F44 | M235i | -20mm | -20mm | 1221-24011 | For M235 only | |
| 3 Series | G20 | M340i MSpo | -30mm | -30mm | 1221-32013 | X-Drive models untested |
| 330i MSpo | -20mm | -20mm | 1221-32011 | Standard and SE trims:30mm ride height reduction. X-Drive models untested | ||
| 320i MSpo | -20mm | -20mm | 1221-32011 | Standard and SE trims:30mm ride height reduction. X-Drive models untested | ||
| 320d MSpo | -20mm | -20mm | 1221-32012 | Standard and SE trims:30mm ride height reduction. X-Drive models only | ||
| G21 | M340i | -30mm | -30mm | 1221-32112 | For X-Drive. LCI:20mm ride height reduction. | |
| 330i MSpo | -20mm | -20mm | 1221-32111 | Standard and SE trims:30mm ride height reduction. X-Drive models untested | ||
| 320i MSpo | -20mm | -20mm | 1221-32111 | Standard and SE trims:30mm ride height reduction. X-Drive models untested | ||
| 320d MSpo | -30mm | -30mm | 1221-32113 | X-Drive models untested | ||
| 4 Series | G26 | M440i | -25mm | -25mm | 1221-32611 | Standard trims:20mm ride height reduction. |
| 420i MSpo | -25mm | -25mm | 1221-32612 | |||
| G22 | 420i MSpo | -20mm | -20mm | 1221-32211 | Standard trims:20mm ride height reduction. | |
| 8 Series | G15 | M850i | -20mm | -20mm | 1221-31511 | |
| G16 | M850i | -20mm | -20mm | 1221-31612 | for xDrive | |
| 840i MSpo | -20mm | -20mm | 1221-31611 | Standard trims:20mm ride height reduction. | ||
| X1 | U11 | 20i | -25mm | -25mm | 1221-81112 | For Xdrive |
| 20d | -25mm | -25mm | 1221-81111 | For Xdrive | ||
| X2 | F39 | 20i | -30mm | -30mm | 1221-23911 | For Xdrive |
| 20d | -30mm | -30mm | 1221-23911 | For Xdrive | ||
| 18d | -30mm | -30mm | 1221-23911 | For Xdrive | ||
| X3 | G01 | M40d | -30mm | -30mm | 1221-30112 | For Xdrive |
| 20i | -30mm | -30mm | 1221-30111 | For Xdrive | ||
| 20d | -30mm | -30mm | 1221-30111 | For Xdrive | ||
| Z4 | G29 | M40i | -20mm | -20mm | 1221-32912 | |
| 20i | -15mm | -10mm | 1221-32911 | No information for Non-M-Sport | ||
| M | G87 | M2 | -25mm | -25mm | 1221-38711 | |
| G80 | M3 | -20mm | -10mm | 1221-38011 | For AT 2WD | |
| G82 | M4 | - | - | in development | For AT X-drive | |
| M4 | -25mm | -25mm | 1221-38211 | For AT 2WD | ||
| i | G26 | i4 e40 | -15mm | -15mm | 1221-32613 | Air suspension adjuster rods at rear |
| i4 M50 | -25mm | -25mm | 1221-32614 | Air suspension adjuster rods at rear | ||
| MINI | F54 | JCW | -25mm | -25mm | 1221-25411 | For CLUBMAN 4WD |
| F56 | JCW | -25mm | -25mm | 1221-25611 | For LCI2 | |
