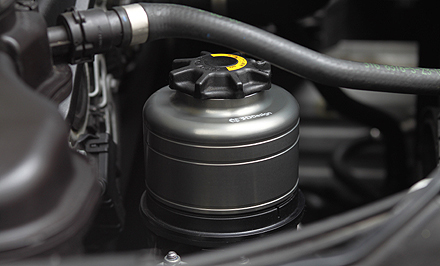

Reserver tank attachment

Under the condition of a high RPM, a high temperature, and a heavy condition as driving the circuit etc. , the power steering oil will leak from the reserver oil tank.

And, the steer feeling decreases when air mixes with oil (Cavitation) by a decrease of oil and the wave on the surface of oil, and the deflate of the mixed air is needed. " Reserver tank attachment" prevents the oil leak by easily installing it between a pure tank and the filler cap.

fReserver tank attachment

Part number :
5302-00111
Material :
alminium
Application :
Fit to resever tank 3241 6 768094(confirm the factory part no.)
Note :
It require space 35mm or more over the reserver tank head in order to install.

installation guide(PDF:90KB)
